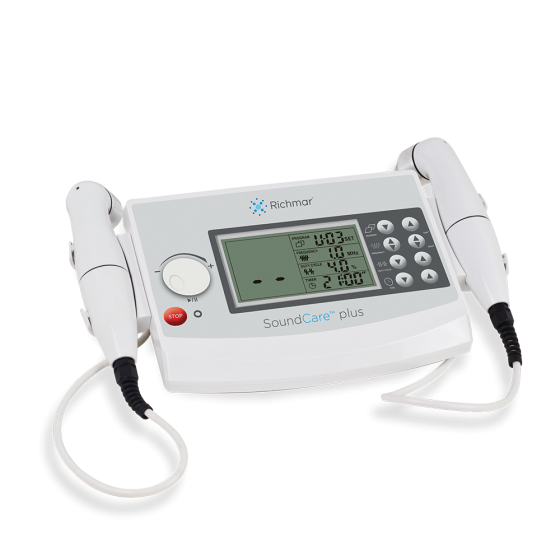

      SoundCare™ Plus Ultrasound Unit with 2 Sound Heads, 1 cm and 5 cm

      Item# 661 0064
      110% Price Match Guarantee

      $799.95

      Please Log in to view professional pricing for this product.

      SELECT QUANTITY:
      -
      +


      Questions? Call (800) 577-5694



      Description

      SoundCare™ Plus

      The SoundCare™ Plus is the newest addition to the Current Solutions™ line of innovative products. The SoundCare Plus™ is a Professional Ultrasound device, designed by Clinicians. This professional device is unique…. it comes standard with 2 sound heads, 1 cm and 5 cm, that are both plugged into the device at the same time. The user can switch between wands with a single button push. The SoundCare™ Plus has 20 presets and operates in 1MHz and 3 MHz frequencies.



      Specs & Features:



      Acoustic Frequency: 1MHz ± 10%, 3MHz ± 10%
      Output Power: 0.5W - 10.0W ± 20%, when duty factor = 80% for 5cm2 0.5W - 10.0W ± 20%, when duty factor = 80% for 5cm2 0.5W - 10.0W ± 20%, when duty factor = 80% for 5cm2 0.5W - 10.0W ± 20%, when duty factor = 80% for 5cm2
      Pluse repetition rate: 100Hz ± 10%
      Duty factor : 10% - 100%, Stepping 10%
      Timer: Max 30 minutes
      Effective radiating area (AER): 5.0 cm2 ± 20%;1.0 cm2 ± 20%
      Actual intensity: 3.0W/cm2 ± 20%(1.0 MHz)3.0W/cm2 ± 20%(3.0 MHz)
      RBN (Max): 5.00
      Beam type: Collimated
      Material of Applicator: Aluminium
      Waterproof Grade: IPX7 Only for treatment head
      Warranty: 2 Year Warranty, Extended Warranty Available

      Program Frequency Duty Cycle Treatment Time Suggested Intensity
      U-01 1MHz 80% 10 minutes 1.0W/cm2
      U-02 1MHz 50% 10 minutes 1.0W/cm2
      U-03 1MHz 50% 20 minutes 1.5W/cm2
      U-04
      1MHz
      50%
      15 minutes
      1.0W/cm2
      1.5W/cm2
      2.0W/cm2
      U-05 3MHz 80% 15 minutes 1.0W/cm2
      U-06 1MHz 30% 15 minutes 1.5W/cm2
      U-07 1MHz 80% 15 minutes 1.0W/cm2
      U-08 1MHz 80% 8 minutes 1.5W/cm2
      U-09 1MHz 50% 12 minute 1.5W/cm2
      U-10 3MHz 80% 10 minutes 1.5W/cm2



      Manuals

      Documents Available

      SoundCare Plus Manual
