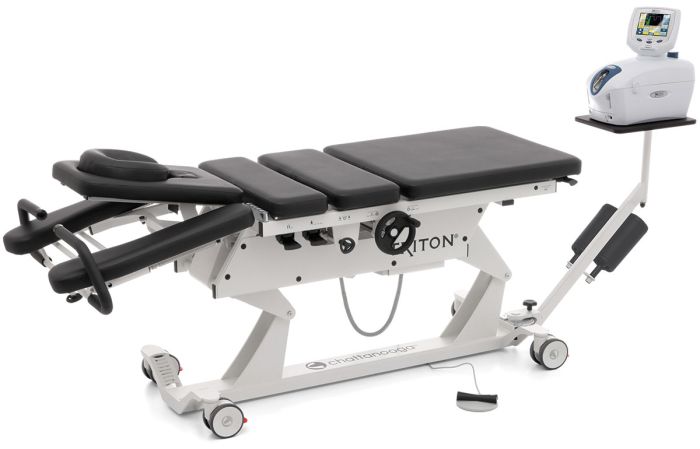

Triton® DTS 6M Traction Table Advanced Package

Triton® DTS 6M Traction Table Advanced Package

****Financing options available for as low as $227 per month; contact our local sales rep for more details****

Comprised of 6 sections, the Triton® 6M traction table uses a combination of gas springs and electric power to aid manual adjustment, allowing for easy control of table positioning. Each section is adjustable, providing a wealth of achievable patient positioning options. Together with a Triton® Traction Unit, the Triton® 6M is a solid choice for the basis of any therapist’s practice.

• 6-section treatment table provides maximum patient comfort in prone and supine positions to aid manual and traction therapy.
• Pelvic tilt section can be adjusted from 0° to 15° to aid flexion of lumbar spine and to help address pelvic asymmetry.
• Head piece can be repositioned from -15° to +40° to allow easy access to thoracic and cervical spine.
• Tuck-away grab bars for hanging traction without thoracic restraint.
• Leg section is adjustable from 0° to 45°.
• Gas springs assist in friction-free movement of head, pelvic, chest and leg sections which are easily accessible from either side of the table.
• Foot/hand controller allows easy adjustment of table height and includes a lockable safety mechanism.
• Available in Black, Blue, Grey or Imperial Blue

Advanced Package Includes:

• Triton® DTS 6M Traction Table
• DTS Triton Traction® Unit
• QuickWrap™ DTS Belt Set
• Knee Bolsters
• Traction Pillow
• Stabilizer Pressure Biofeedback (PBF)
• Clinical Cervical Traction System – Includes Clevis

Technical Specifications

• Mains Power: 120V ~ 50/60 Hz
• Current: Max 2A with 120V
• Dimensions:
  • Total: 90.5” x 37” x 31”
  • Head/Back Section: 28”
  • Middle Section: 8.6”
  • Pelvic Section: 10”
  • Leg Section: 30”
  • Width: 27.5”
• Adjustment:
  • Height: 19” – 37”
  • Angle Inclination: Head Section -15° to +40°, Pelvic Section 0° to 15°, Leg Section 0° to 45°
  • Displacement Leg Section 4”
• Dynamic Lifting Capacity: 440 lbs
• Maximum Workload: 605 lbs
• Patient Weight: 363 lbs
• Electrical Safety Class: Class I, Type B
• Safety Tests: CE, Class 1 Rule 10
• Table Weight: 428 lbs
