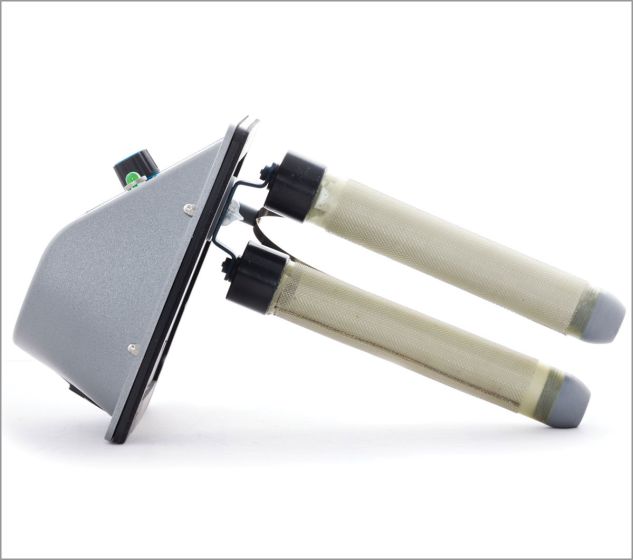

AtmosAir Matterhorn 1002 Ionization System

AtmosAir Matterhorn 1002

The Matterhorn 1002 ionization system is intended to be mounted in the supply duct or air handler of a heating, cooling, or ventilating system. The unit is intended to operate only when air flow is present, thus, power to the ionization unit should be interlocked with fan operation, or controlled via an air pressure switch. The size and number of ionization systems is dependent upon the airflow, size of the space , and severity of the pollution and odors. Ionization can be adjusted with a 5-step knob.

Optional:

• Air Pressure Switch
• Mounting Bracket
• Timer
• Remote Monitoring Panel

General Product Information

• Air Flow Rating: Up to 5000 CFM
• Housing Material: Flame-Rated, High Impact ABS (Underwriters Laboratories Inc. pending as plenum-rated per UL 1995, 867; file # 313742. Energy Star Certified.)
• Weight: 6.0 lbs
• Max Operation Temperature: 200°F (~93°C)

Electrical:

• Rated Voltage: 115 VAC
• Frequency: 50/60 Hz
• Power Consumption: 6 Watts
• Current Draw: 37 mA
• Internal Fuse: 1.0 Amp FST Glass 5mm x 20mm
  Field Electrical Connection: Field Electrical Connection; 3-Wire to Jct. Box or Country Specific Cord-Set
