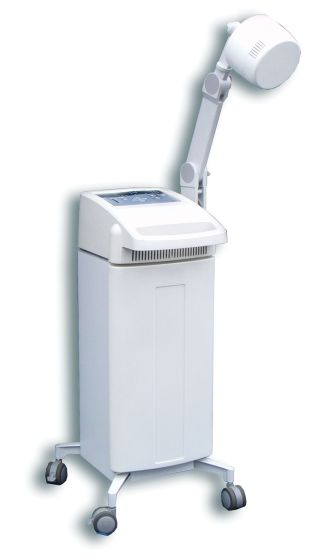

ME 391 Auto*Therm Diathermy Package

ME 391 Auto*Therm Diathermy Package

The Auto*Therm 391 can easily be carried between treatment rooms when the soft-rubber capacitive pads are being used. Or it can be mounted to the cart to provide a solid platform for the inductive coil drum electrode. It provides shortwave diathermy with either continuous or pulsed modes.

Package Includes

Diathermy Unit
Four-Joint Arm
5.5" Coil Applicator without cable
Cart

Features

Input: 100–240 VAC, 50-60Hz
ETL and C-ETL Listed
Weight (Unit only): 15 lbs
Dimensions (Unit only): 7”H x 14”W x 16½”D
Frequency: 27.12 MHz
HF output: Continuous mode 100W Average Power
Pulsed Mode: 200 W Peak Power
Pulse frequency: 10Hz, 20Hz, 50Hz, 100Hz, 400Hz
Pulse duration range: 65 µs, 100 µs, 200 µs, 300 µs and 400 µs
Treatment time: 1–30 minutes
Operating Temperature: +50°F to +104°F
Humidity: Operating, 30% to 75% Relative Humidity at 104°F
Non-operating, 5 to 95% Relative Humidity, non-condensing
Storage Temperature: -40°F to 167°F
Storage Humidity: Storage, 30% to 90% Relative Humidity at 104ºF, Non-condensing
Storage Pressure: 700-900 mB
Warranty: 2 years on unit, 1 year on applicators & accessories
