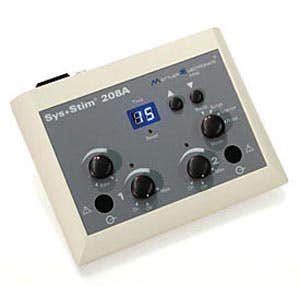

Mettler Sys*Stim 208A, Two Channel Low Volt Stimulator

Mettler Sys*Stim 208A Low Volt Stimulator

The Sys*Stim 208A is a two-channel, low-volt stimulator with Surge, Pulse, Tetanize and Reciprocation modes. It has easy to-operate knobs that control stimulation intensity and frequency, a digital timer and a remote patient cut-off switch. It is a small, portable stimulator with a clinical appearance.

Features:

• Input: 100 - 240 volt AC 50/60 Hz, 0.75 Amp (max)

• External Fuse: 0.75 A, 250 V, Slow Blow

• Weight: 1.5 lbs

• Dimensions: 2 3/4 x 6 1/10" x 8"

• Max Treatment Time: 60 minutes

• Channels: Dual

• Wave Form: Asymmetrical bi-phasic with zero net DC

• Voltage: 110 V Peak into a 1 k ohm load; 28 V peak into a 100 ohm load

• Intensity: 56 µC max per pulse into a 100 ohm load

• Phase Duration: 200 µs at 50% max amplitude

• Frequency: Pulse mode = 1 - 80 Hz; Tetanize Mode = 80 Hz; Surge Mode = 80 Hz

• Surge Cycle: 0.5 on/off to 3.75 on/off
