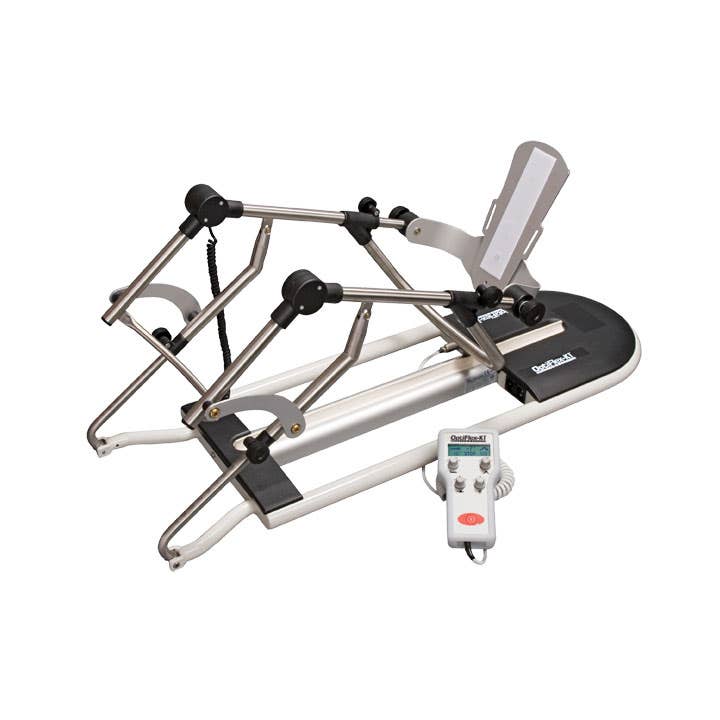

Optiflex-K1™ Knee CPM Unit with Standard Pendant

Optiflex-K1™ Knee CPM Unit with Standard Pendant

Continuous Passive Motion is a postoperative procedure designed to aid in the recovery after joint surgery. After extensive joint surgery, if a patient fails to move their joint, the tissue around the joint will become stiff and scar tissue will form, resulting in a joint with limited range of motion, which often takes months of physical therapy to recover. OptiFlex-K1 Knee CPM has interchangeable hand controls for maximum versatility.

Features and Benefits

• Weighs just 23 lbs (10.4 kg), making it the lightest knee CPM on the market
• Only 38 inches (97 cm) long
• Wide low-profile, closed-base frame for stability
• Faster motor speed
• Single screw drive
• Reversible footplate for shorter legs
• ROM -10 to 120
• On-board power supply
• Patient lockout feature
• Accommodates patients 4 ft to 6.6 ft (1.2 m - 2 m)
• Two-year warranty

Technical Specifications

• Knee Flexion: 120°
• Knee Extension: -10°
• Speed: 25° - 180°/minute
• Pauses: 0 - 59 seconds
• Force Reversal: 45 Kp of force* (built in)
• Patient Height: 4 - 6.5 ft (1.2 - 2 m)
• Calf Length Range: 10" - 22" (25.4 - 55.9 cm)
• Thigh Length Range: 12" - 19" (30.4 - 48.2 cm)
• Mains Power: 100V-240V, AC 50-60Hz
• Unit Weight: 23 lb (10.4 kg)
• Shipping Weight: 54 lb (24.5 kg)
• Dimensions: 38" x 14" x 9" (97 cm x 36 cm x 23 cm)
• Electrical Safety Class: Class 1, Type B
• Safety Tests: IEC 60601, 1:1988 +A1:1991, +A2:1995, CAN/CSA C22.2 NO 601.1 M90, ANSI/UL 60601-1, IEC 60601-1-2, IEC 60601-1-4, ISO 14971, ISO 10993-1

Hand Controller Functions
