Pointer-Plus LT Hand Held Acupuncture Point Stimulator

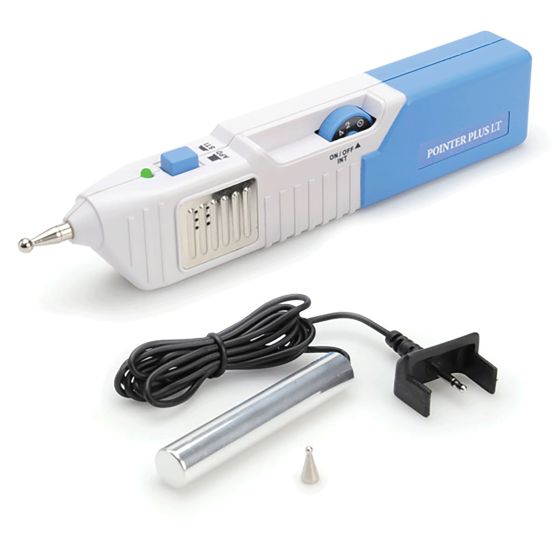

Pointer-Plus™ LT Stimulator

The Pointer Plus LT Stimulator is a complete clinic in your hands. Modern, hand held, 6.5" long unit offers accurate acupuncture point stimulation with adjustable intensity dial. The pulse frequency is fixed at 10 Hz. The grounding circuit is made by holding the metal plate on the side of the unit or with the hand grounding pole.

Specifications:

Output Channels	One
Frequency	10 Hz (fixed)
Volts and Current	0 to 22.5 volts, 0 to 45 milliamps
Pulse Width	260 Microseconds(µS)
Pulse Shape	Asymmetric biphasic square wave
Pulse Modes	Continuous
Skin Impedance Monitoring	Sound and light indication
Frequency Indicator	Flashing green light
Power Source	9 Volt Battery
Size, Weight, Color	6.5” x 1.3” x 0.9”, 86gm, Blue and White
