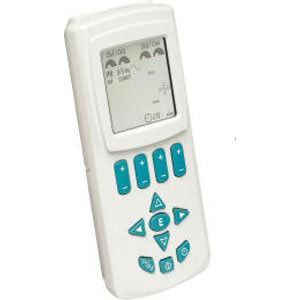

Quadstar II, 4 Channel Digital NMS, INF and TENS Device

Quadstar II 4 Channel Digital NMS, INF and TENS Device

The QuadStar II is a portable four channel digital NMS, INF and TENS device. Unique with 3 waveforms (symmetric biphasic, pulsed sine and asymmetrical biphasic) that can be programmed to deliver NMS, INF or TENS therapy . There are 9 preprogrammed fixed sequences which enable the user to program 20 minutes of INF subsequently followed by 20 minutes of NMS therapy and ending with 20 minutes of TENS therapy. A programmable sequence allows the user to customize the therapy and times. A graphic representation of the timing parameters is shown on the screen to assist the user to program the on/off ramps and on/off times. In addition there is a patient lock system when activated prevents the patient from changing any parameters. When the lock is turned off, a patient compliance meter is displayed.

General Specifications:

• Dimensions: 6.30" x 2.75" x 1.25" (160mm x 70mm x 32mm)
• Power Supply: 4 AA Batteries, type LR6 & AC adapter
• Channels: 4
• Electrodes/Lead Wires: 8 (4 sets of lead wires)

• Tolerance: +/- 1%
• 5 Year Warranty
